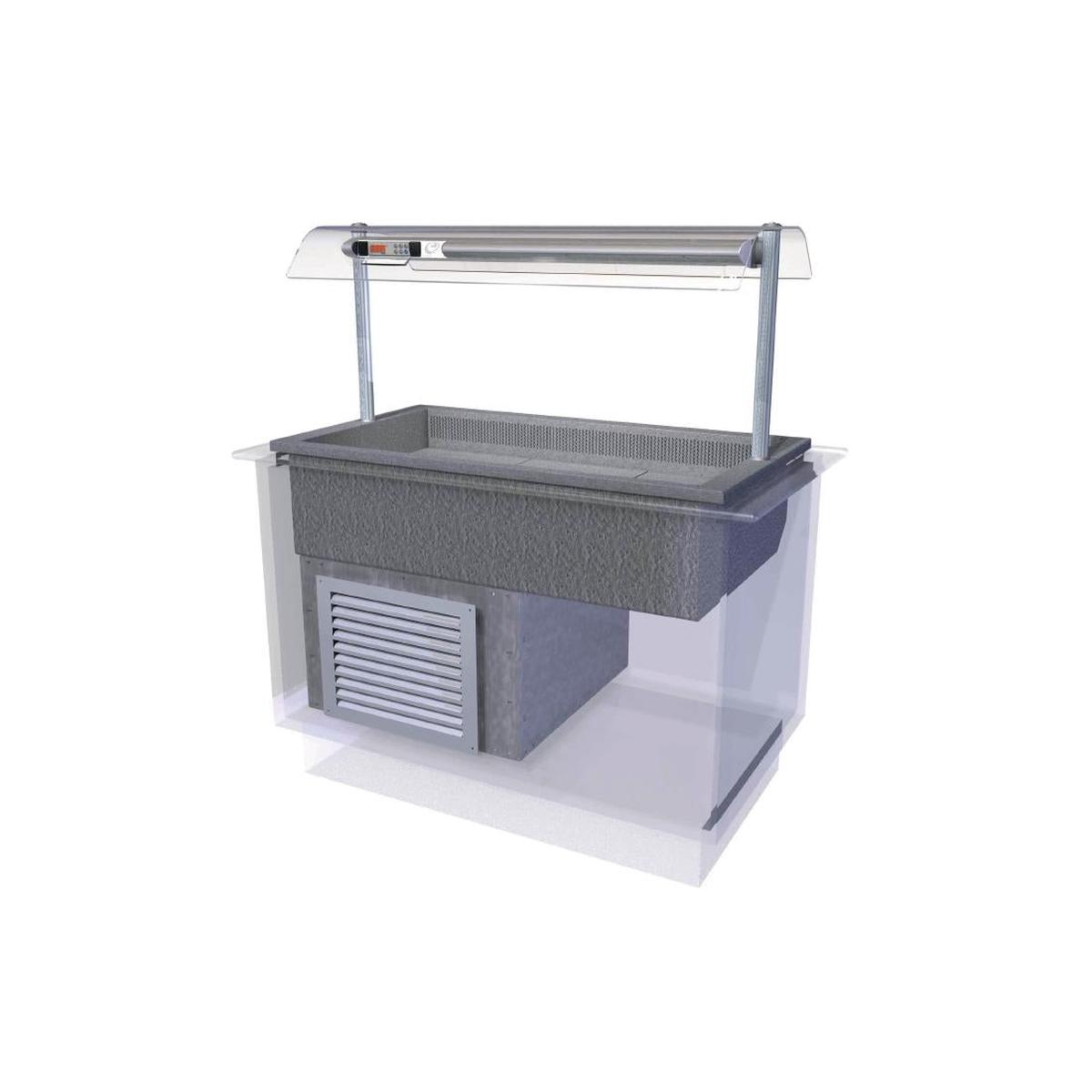

Designline Drop In Cold Island Well Self Service 1175mm – CW607

Illuminate, chill and protect refrigerated food or drink with CED’s elliptically shaped Designline self help cold island well drop in display. This energy efficient 3/1 Gn size refrigerated display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. The display fits into a countertop and fitting the air grills supplied provides the ventilation needed for the underslung refrigeration condensing unit. The self help superstructure is made from bright polished steel and alluminum curved profiles, with curved & toughened glass sneeze screen protection providing customer access to both sides of the display. Product illumination is from diffused lighting in the elliptical profile gantry, which also houses an eye level digital temperature display and ‘temperature lockable’ control panel, to the operator side of the display. The display has 24 hour operation as standard & holds food core between 2 – 5 deg. C. Modular removable deck plates in the chilled island well make for easier cleaning & an integral condensate water evaporator eliminates the need for site drainage. The display comes complete with air inlet grills, lifting kit and a 2m lead and plug top for installation. GN’s Sold Separatley.

Product Specification

• Capacity 3x 1/1 GN
• Dimensions 535(H) x 1175(W) x 660(D)mm
• Dimensions Int 115(H) x 1050(W) x 550(D)mm
• Material Curved Toughened Glass, Stainless Steel and Aluminium
• Material Ext Stainless Steel
• Power 1.22kW, 230V, 13A
• Refrigerant R290 / GWP 3 / 365g
• Supplier Ref CIW3HT
• Temp Range -1C to 5C
• Voltage 230V
• Warranty 1 Year
